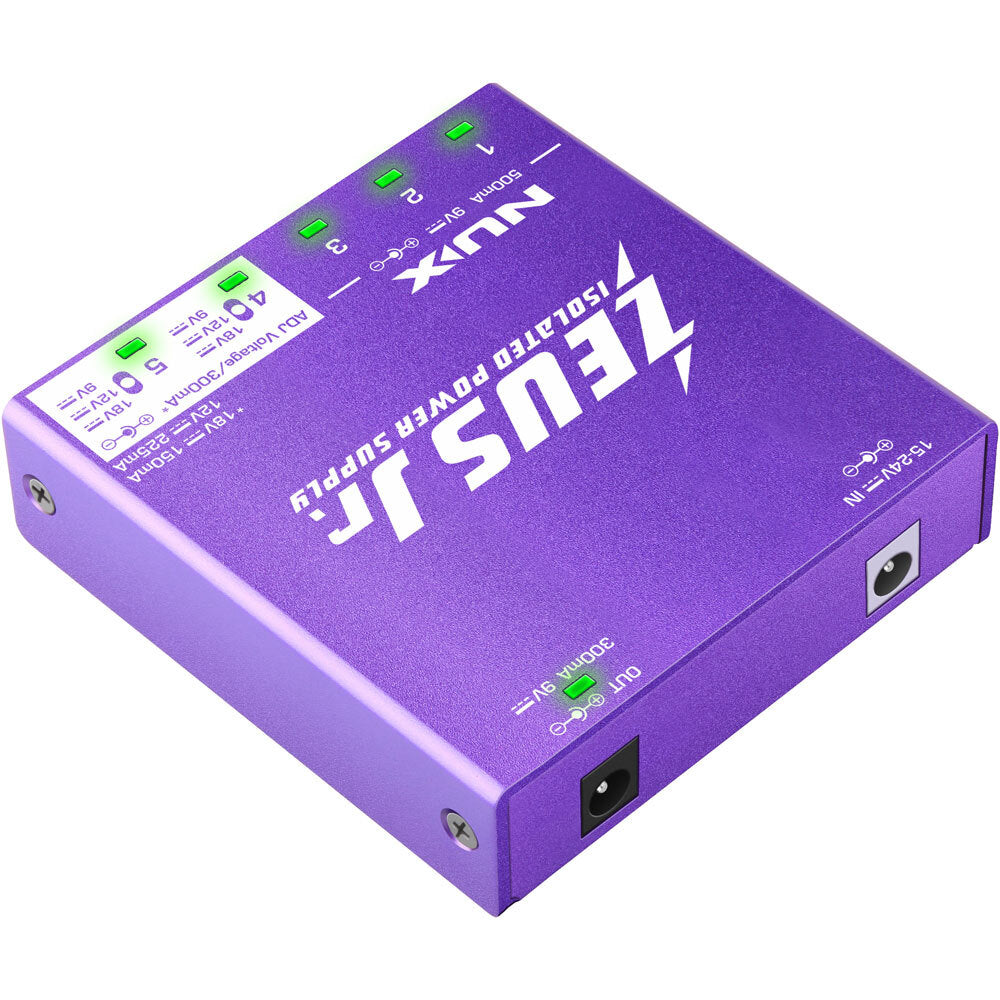

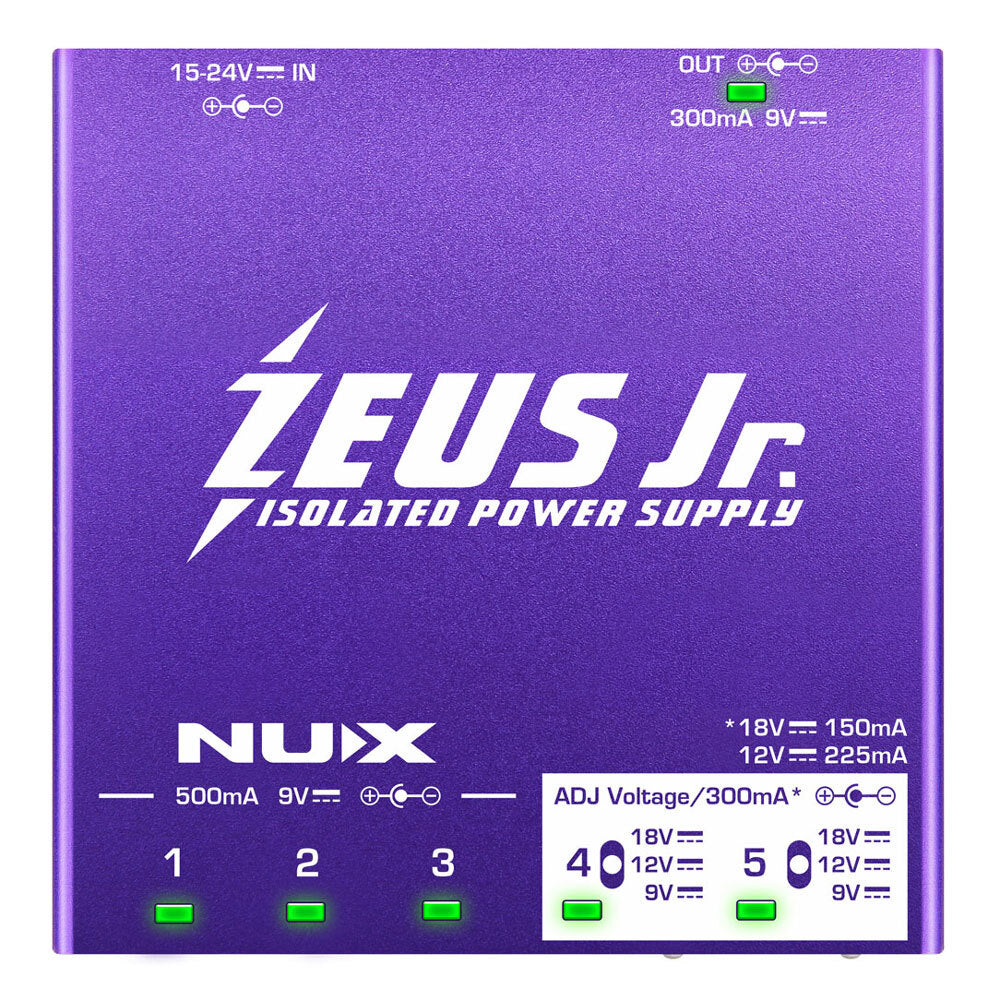

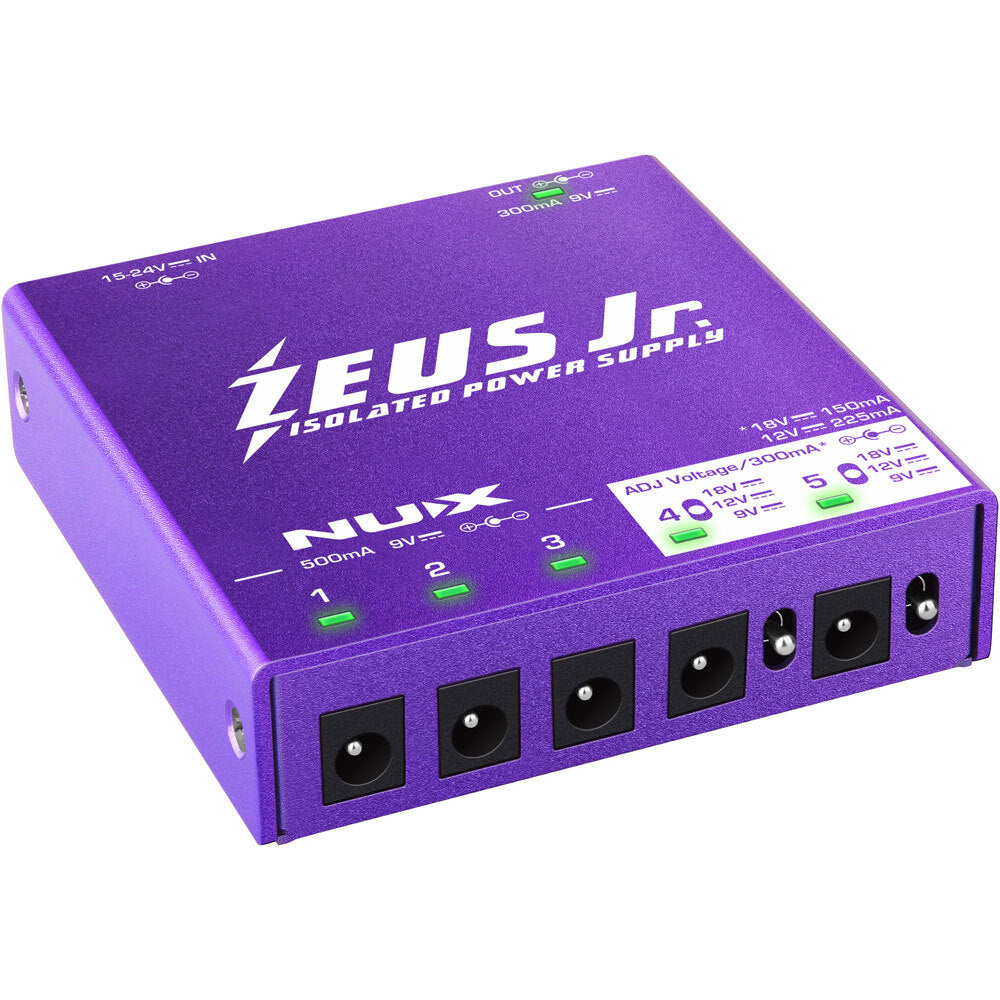

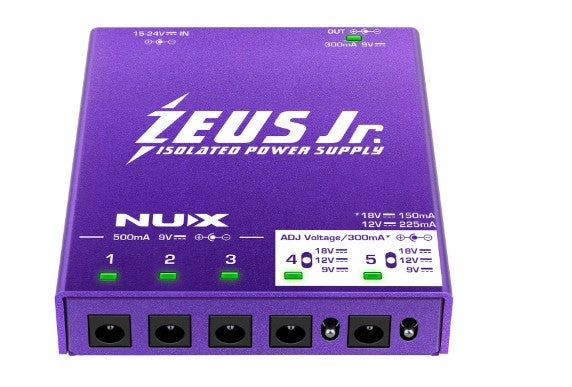

NU-X ZEUS JNR PEDAL POWER SUPPLY W/ 5 OUTPUTS

Zeus was the god of the sky and thunder. His most famous power is the ability to throw lightning bolts. That's why we name the power supply "ZEUS"

SPECIFICATIONS:

• 15-24V DC in with anti-reverse connection.
• 4 high-current, fully isolated 9V outputs with center-negative polarity.
• 500mA per 9V DC output powers nearly any pedal(except one provides 300mA).
• 2 selectable outputs offer 9V, 12V, or 18V DC options (9V/300mA | 12V/225mA | 18V/150mA).
• 6 pedal cables, 15V power adapter, and IEC cable included.
• Dimensions (L x W x H): 90mm x 88mm x 24mm
• Weight: 184g

The Concept
ZEUS Jr. provides 6 high current isolated DC power outputs. Included are 6 isolated switching power transformers, offering a clean and stable power source for your pedals. These days, guitarists like to integrate digital post effects like Eventide, Strymon, ...etc. So, ZEUS Jr. comes with 4 outputs (9V/500mA*3 | 9V/300mA*1) and 2 adjustable high current outputs (9V/300mA | 12v/225mA | 18v/150mA). This enables you to use your favorite Fuzz or Phaser with the adjustable output to find the best sound.

*All of the brand and model names mentioned on this page are Trademarks of their respective owners, which are in no way associated or affiliated with Pro Music Australia, NUX Effects and Cherub Technology CO. LTD.

The Background
As an innovative musical instrument brand, NUX has built several well-known pedals and multi-effects. And for users who use high gain distortion pedals, finding an adequate power supply tends to be a headache. While a DC daisy-chain can drive several pedals, the combination of analog and digital pedals on a single chain can result in annoying ground noise. So, we set out to build a reliable, extreme-low-noise, lightweight, universal, high current, all-isolated power supply

While doing our research, we found that many manufacturers used "toroidal transformer in their power supply solutions, which while they can over clean power, the trade off in efficiency, weight, and size led us to find a better solution, which we call Zeus.

Unique Features - Effciency (Reliable)
ZEUS Jr. is significantly more efficient than linear power supplies. Our engineers tested the output efficiency of ZEUS Jr. with different input voltages. The average output efficiency is 76.7% with 15V input, and 77.3% with 24V input.

Self-Regulated Output (Ultra Low Impedance)
Unlike other switching power supplies, which use multi-stage filtering to eliminate the noise. The self-regulated output design of ZEUS Jr. has ultra-low impedance that offers you clean power and retains great dynamics!

ZEUS Jr. is a reliable, extremely low-noise, lightweight, universal power, high current, all-isolated power supply.

Pedalboard-friendly Size
ZEUS Jr. comes with a small and lightweight housing, making it effortlessly mountable underneath virtually any pedalboard.

Universal AC Power (100V~240V World Tour Ready)
As a working musician's tool, you don't need to worry about the AC voltage, just choose the specific IEC power chord and plug, plug it, and you are good to go.
