NU-X 50W Personal Monitor 6.5-inch - Woofer 1-inch Tweeter
NU-X 50W Personal Monitor 6.5-inch - Woofer 1-inch Tweeter

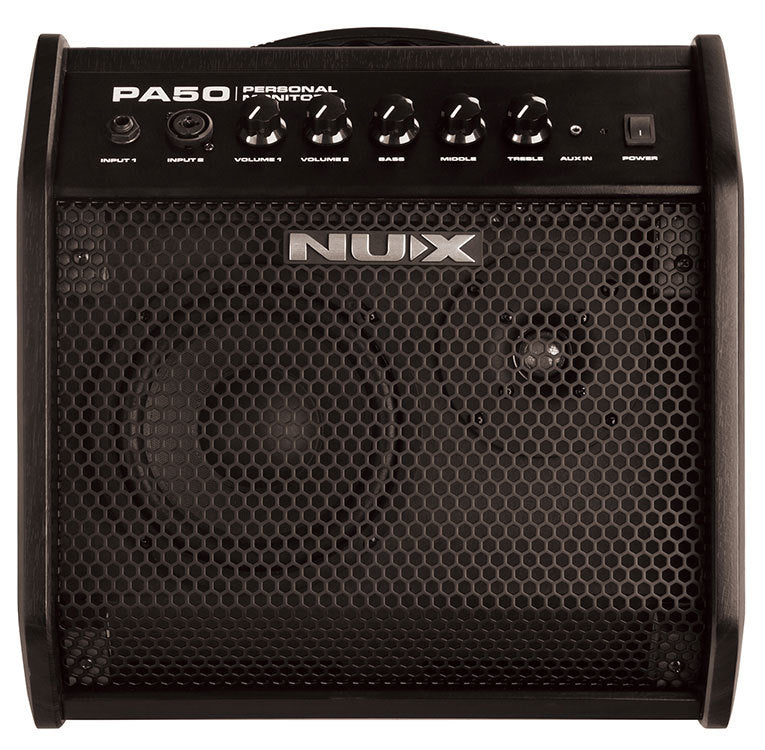

NUX PA-50 Personal Monitoring Amplifier for Electric Guitar Players. PA-50 is a multi-purpose 50 watt, 2 channels amplifier with a 6.5-inch super-sensitive woofer and 1-inch tweeter. Being a full range powered monitor, PA-50 can fully present the richness of tone characteristic of all kinds of instruments.
Dual channel input, 3-band equalizer, 1" tweeter and 6.5" woofer, PA-50 is perfect for small gigs, studio recording or even living stage performance.
- Channel 1 - 1/4 unbalanced input, designed to plug any instrument directly including acoustic guitar, digital piano and keyboard, and electronic drums.
- Channel 2 - combo 1/4 unbalanced and XLR balanced input and designed to plug everything including the microphones
Features:
- Dual input Channels, 1 x 1/4” unbalanced input jack and 1x 1/4” balanced XLR input jack
- 3 band equalizer, independent volume control for each channel
- Power Output: 50W RMS
- Speakers: High sensitive 6.5” woofer, 1” tweeter
- AUX-IN and AUX OUT Jack
- Frequency Response: 50-20Hz (-3dB)
- Power Supply: AC100~120V, AC220~240V (50/60Hz)
- Power consumption: ≤88W
- Dimensions: 361mm x 364mm x 325mm
- Weight: 11.5 kg
EQ Specifications
- Bass: ±10Hz@80Hz(shelving)
- Middle: ±10Hz@1.8Hz(peaking)
- Treble: ±10Hz@15Hz(shelving)
Input Impedence
- Channel 1: 2.2MΩ
- Channel 2: 100 KΩ
- AUX Input: 6.6 KΩ
Connection Tip:
You can connect any speaker cabinet simulator pedal or an IR loader to Input 2.
PA-50 comes with various onboard connectors which can cover musician’s daily needs ultimately.
The onboard dual input channel of PA-50 is ideally for small concert. With just 2 PA-50, you can gig with a standard 4-man band.
- Connect your e-drums and electronic bass to INPUT 1 of each PA-50.
- Connect your Microphone and keyboard to INPUT 2 of each PA-50.
- Adjust the volume level and overall tone of each PA-50
You can connect your guitar and microphone to PA-50 simultaneously for one man performance.
- Connect your guitar to INPUT 1 of PA-50
- Connect your microphone to INPUT 2 of PA-50
- Adjust the volume level and overall tone of PA-50
