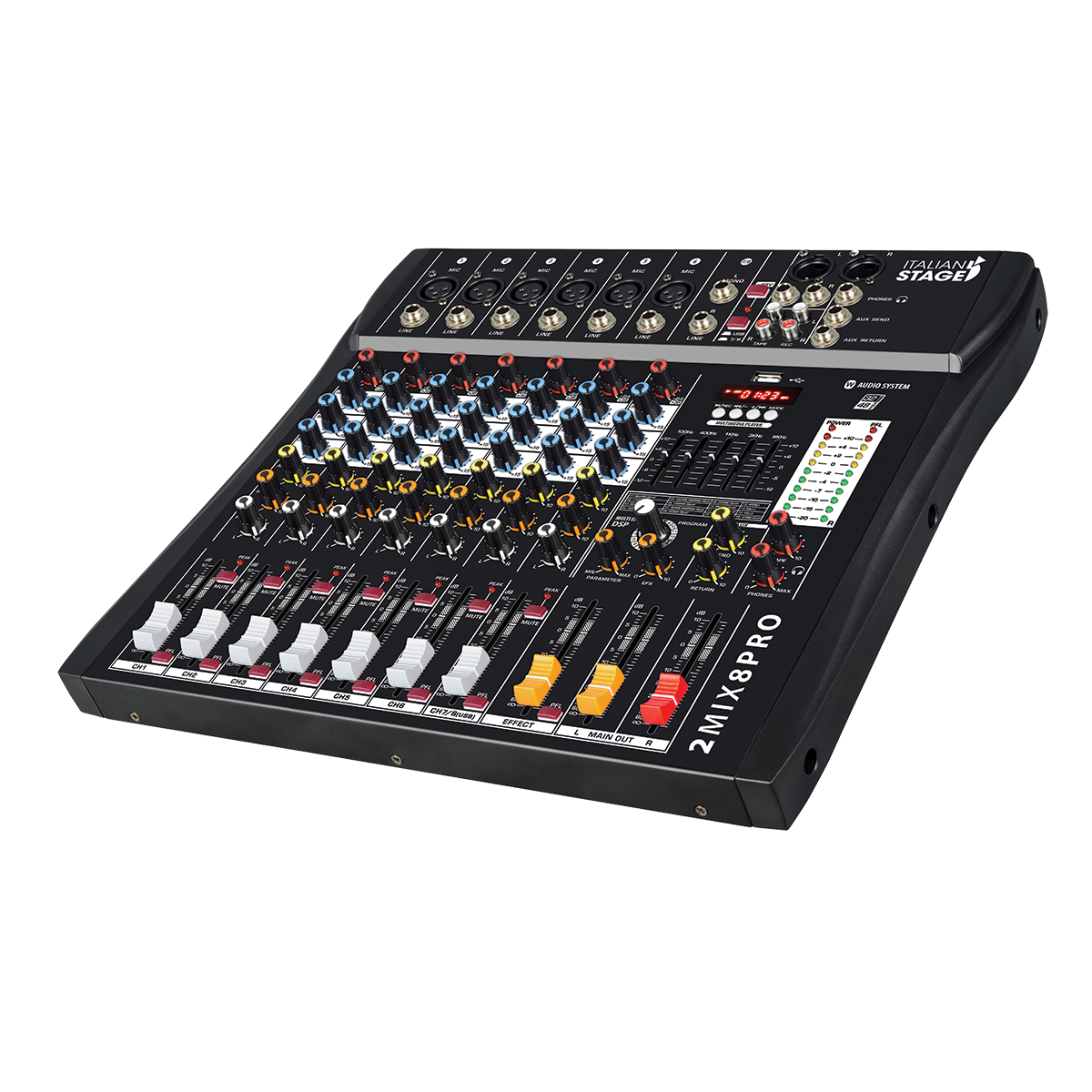

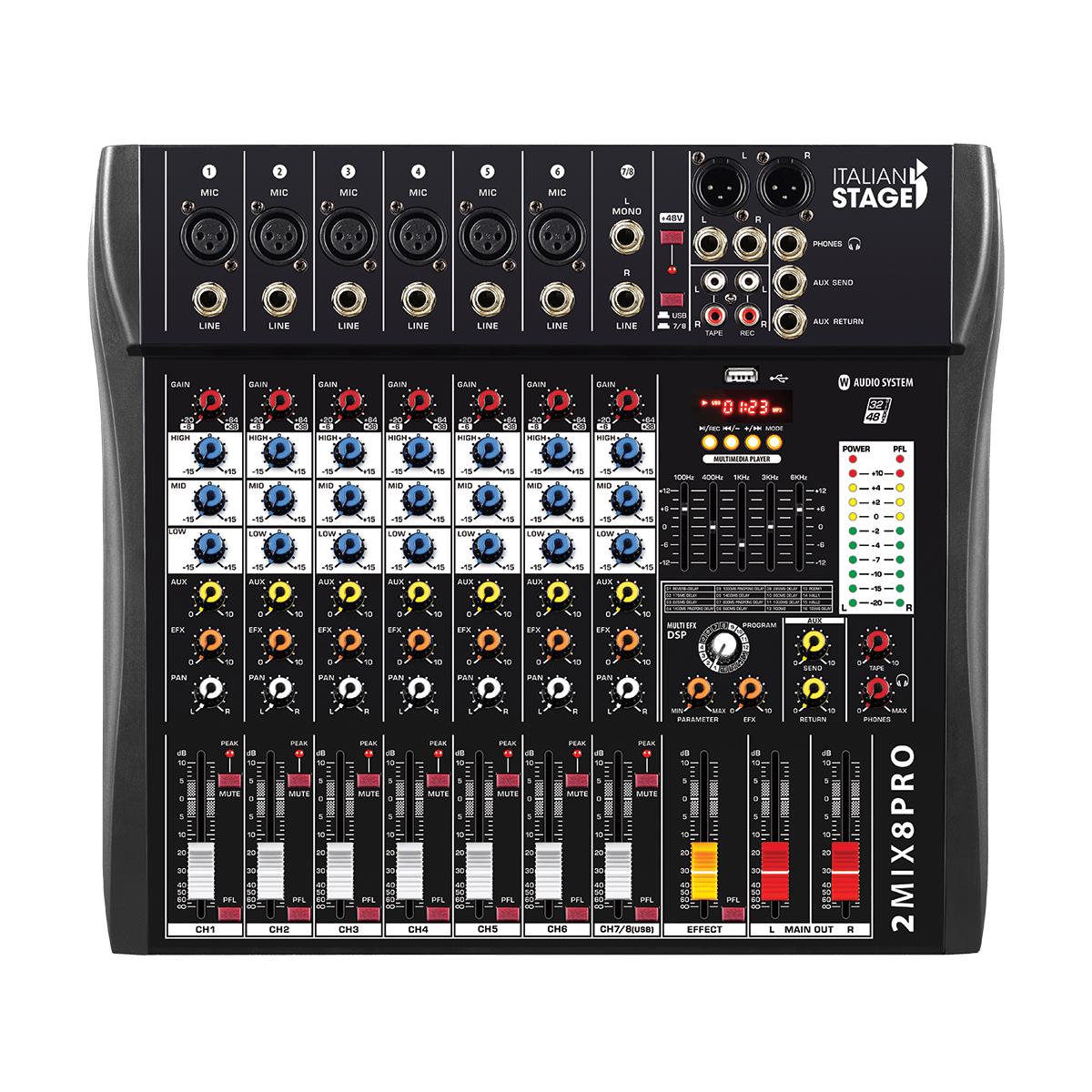

Italian Stage 2MIX8PRO 8-Channel Stereo Mixer
Italian Stage 2MIX8PRO 8-Channel Stereo Mixer
Couldn't load pickup availability
2MIX8PRO
The new Italian Stage 2MIX is small format mixers' series offering everything the musician or the simple enthusiast need, as well as a clear and powerful sound thanks to the use of low noise preamps.
Equipped with a complete feature set, the 2MIX series offers Bluetooth audio streaming, as well as USB recording and playback.
Equipped with a digital DSP Multi FX processor, the Italian Stage 2MIX lineup also works as a 2 + 2 channel USB audio interface for DAW recording / playback. The 4, 6 and 8 channel models also include USB audio with an integrated recorder / player able to record MP3 files directly on USB flash drives. You can play MP3 files as backing tracks, or play background music during live breaks.
- 2 Master Fader
- 1 Effect Fader
- 7 Channel Fader
- 6 MIC / LINE IN, 1 STEREO LINE IN
- Integrated DSP MultiFX processor
- Phantom 48 V
- 3 Band EQ on input channels
- 1 Aux send
- 5 Band Master Graphic EQ
- MUTE and PFL buttons
- Integrated USB Player / Recorder
- Integrated Bluetooth
Download Manual Here
MODEL |
2MIX8PRO |
2MIX12PRO |
|
INPUT CHANNELS | Mono:MIC/LINE | 6 | 10 |
Stereo:LINE | 1 | ||
MP3 Player | 1 | ||
USB sound card | 1 | ||
TAPE/CD Input | 1 | ||
Bluetooth | 1 | ||
OUTPUT CHANNELS | Stereo OUT | 1 | |
Phones | 1 | ||
Send/Return | 1 | ||
BUS | Stereo | 1 | |
Send | 2 | ||
INPUT CHANNEL FUNCTION | CTRL Switch | MUTE - PFL | |
EQ | HIGH:Gain:+15dB/-15dB,Frequency:12 kHz shelving MID:Gain:+15dB/-15dB,Frequency:2,5 kHz shelving LOW:Gain:+15dB/-15dB,Frequency:80 Hz shelving |
||
Peak LED | LED turns on when post EQ signal reaches 3 dB below clipping level | ||
LEVEL METER | 2*10-segment LED meter,(+10,+2,+4,0,-2,-4,-7,-10,-15,-20 dB) | ||
DIGITAL EFFECTS | 48 KHz Digital DSP with 16 Presets (see List at page 7 and 12) | ||
POWER REQUIREMENTS | AC 100-240 V 25 W | ||
DIMENSIONS | 45x380x335 mm | 45x490x335 mm | |
WEIGHT | 3 kg | 3.2 kg |
