Italian Stage

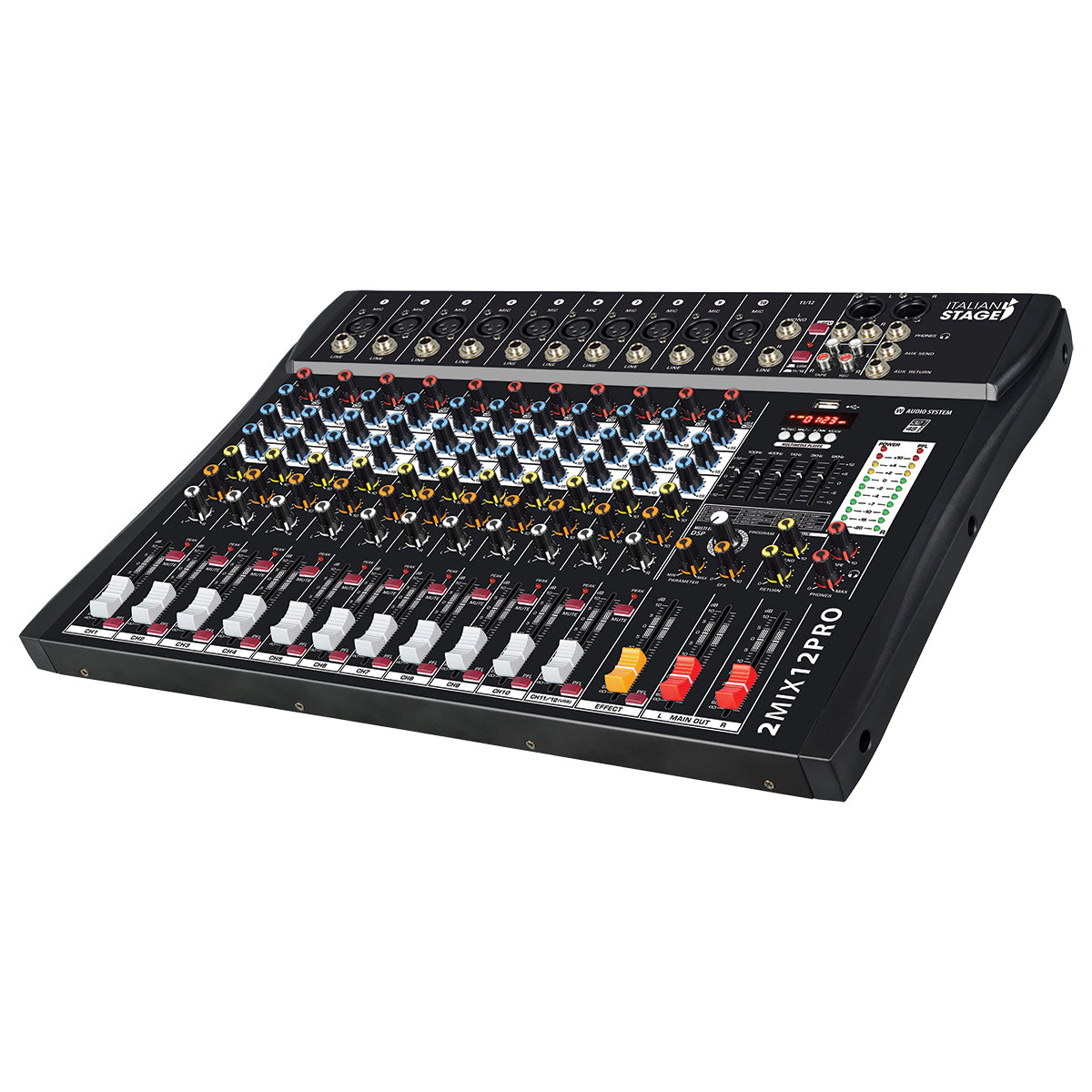

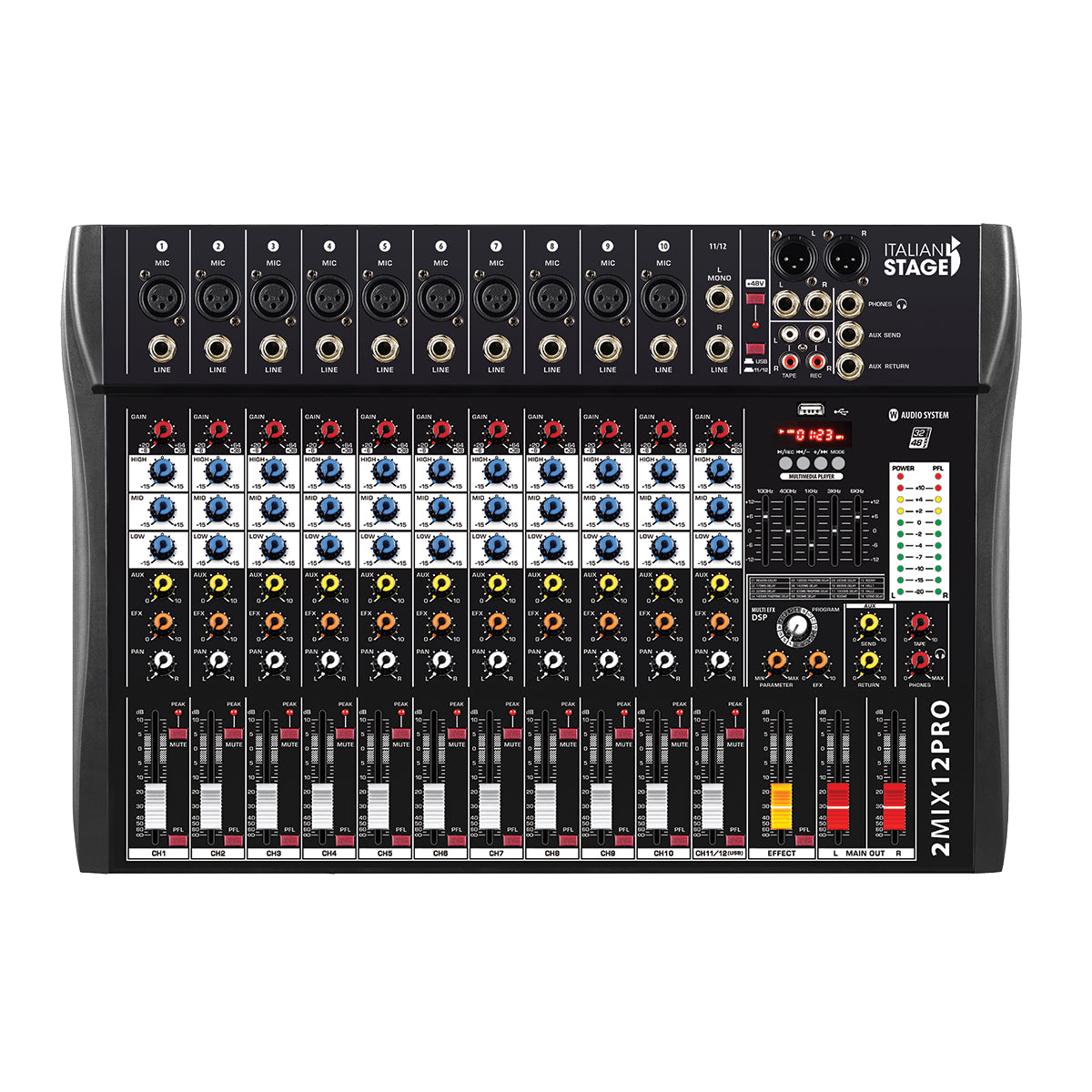

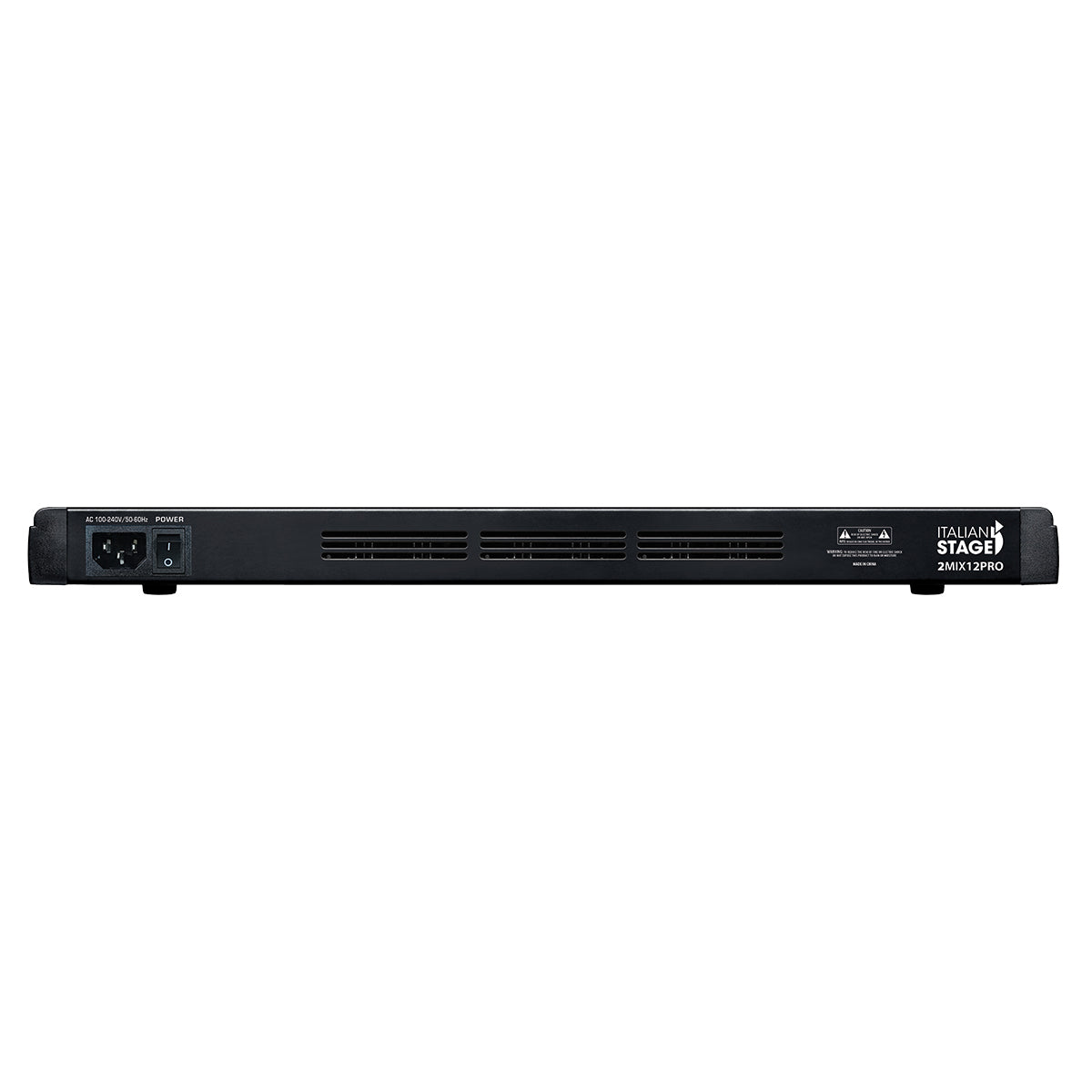

Italian Stage 2MIX12PRO Mixing Desk
Italian Stage 2MIX12PRO Mixing Desk
Couldn't load pickup availability
2MIX12PRO
The new Italian Stage 2MIX is small format mixers' series offering everything the musician or the simple enthusiast need, as well as a clear and powerful sound thanks to the use of low noise preamps.
Equipped with a complete feature set, the 2MIX series offers Bluetooth audio streaming, as well as USB recording and playback.
Equipped with a digital DSP Multi FX processor, the Italian Stage 2MIX lineup also works as a 2 + 2 channel USB audio interface for DAW recording / playback. The 4, 6, 8 and 12 channel models also include USB audio with an integrated recorder / player able to record MP3 files directly on USB flash drives. You can play MP3 files as backing tracks, or play background music during live breaks.
- 2 Master Fader
- 1 Effect Fade
- 11 Channel Fader
- 10 MIC / LINE IN, 1 STEREO LINE IN
- Integrated DSP MultiFX processor
- Phantom 48 V
- 3 Band EQ on input channels
- 1 Aux Send
- 5 Band Master Graphic EQ
- MUTE abd PFL buttons
- Integrated USB Player / Recorder
- Integrated Bluetooth
Download Manual Here
MODEL |
2MIX8PRO |
2MIX12PRO |
|
INPUT CHANNELS | Mono:MIC/LINE | 6 | 10 |
Stereo:LINE | 1 | ||
MP3 Player | 1 | ||
USB sound card | 1 | ||
TAPE/CD Input | 1 | ||
Bluetooth | 1 | ||
OUTPUT CHANNELS | Stereo OUT | 1 | |
Phones | 1 | ||
Send/Return | 1 | ||
BUS | Stereo | 1 | |
Send | 2 | ||
INPUT CHANNEL FUNCTION | CTRL Switch | MUTE - PFL | |
EQ | HIGH:Gain:+15dB/-15dB,Frequency:12 kHz shelving MID:Gain:+15dB/-15dB,Frequency:2,5 kHz shelving LOW:Gain:+15dB/-15dB,Frequency:80 Hz shelving |
||
Peak LED | LED turns on when post EQ signal reaches 3 dB below clipping level | ||
LEVEL METER | 2*10-segment LED meter,(+10,+2,+4,0,-2,-4,-7,-10,-15,-20 dB) | ||
DIGITAL EFFECTS | 48 KHz Digital DSP with 16 Presets (see List at page 7 and 12) | ||
POWER REQUIREMENTS | AC 100-240 V 25 W | ||
DIMENSIONS | 45x380x335 mm | 45x490x335 mm | |
WEIGHT | 3 kg | 3.2 kg |
